4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones

Product Categories
Shenzhen dingshen Industrial Co., Ltd
Contact Now

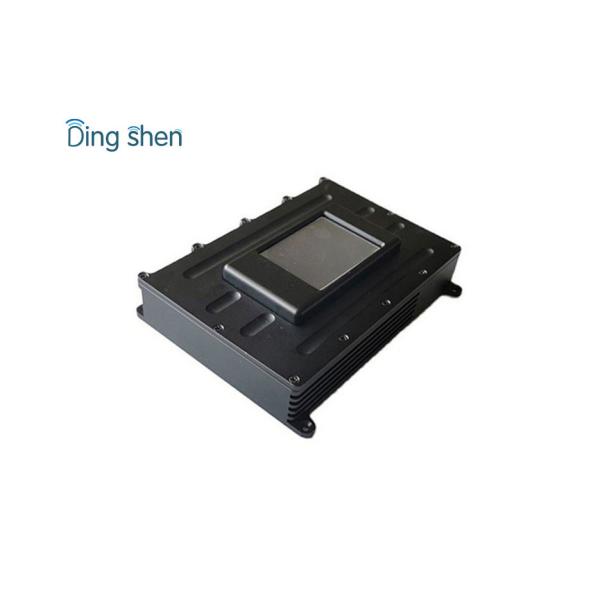

4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HDT2W

Place of Origin : Guang Dong China

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 167*90*25mm

Certification : CE/FCC

DC Input : DC11V~DC16V

Modulation : COFDM

Power output : 1-2W(adjustable),in 1dB step

Encryption : AES128/256bits

FEC : 1/2 2/3 3/4 5/6 7/8

Product name : UAV video and data link

Working Current : ≤1.1A DC12.5V

RF bandwidth : 4/8MHz(adjustable)

Contact Now

Other EOD Talkie Data Firefight Robot Live Video Voice Security System has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in combo. remote control aviation cofdm transmitter is suitable for mobile image, HD video, and it perform well in NLOS digital video transmission..

Other EOD Talkie Data Firefight Robot Live Video Voice Security System is not only small& light, but also has a good performance.For example, it can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

Robot Transmitter Features:

  1. Support Full-HD quality image;
  2. Support 1080i/1080P HD transission;
  3. Built-in with HDM-I or HD-SDI interface(single selection);
  4. Support composite standard video and balanced audio input;
  5. All parameters can be adjusted by user;

Transmitter parameter:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-4400MHz, can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-2W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDM-I(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g

4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones

4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones


Product Tags:

30km UAV Video Link



8MHz UAV Video Link



COFDM Wifi Data Transmitter


Cheap 4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones for sale

4/8MHz 30km UAV Video Link COFDM Wifi Data Transmitter For Drones Images
